opensusegeekoHow To Network openSUSE 12.1 And Windows

This article will show you how to network openSUSE 12.1with Windows XP, Windows Vista, and Windows 7.
It is assumed that you are using the openSUSE default desktop, KDE4 (you’ll need Samba client/server installed).
Any Windows 7 machines should NOT be using the HomeGroup option but instead use the advanced sharing option.
How to share Windows files is not covered. If you can’t do that, well, Linux may be out of your league ;)
This article applies to workgroups only, not domains.

To make it easier on you this is a one page article, heavy on the screenshots.

It is specifically created for the average user and thus relies on the GUI configuration options when possible.

It is my hope you find this article useful.

Initial Setup

From your Suse box, open YaST (type in Root password).
Next go to Network Services > Network Services (xinetd)

xinetd

Find the swat service, highlight, and click the Toggle Status (On or Off) button to toggle on. Then click Finish.

swat1

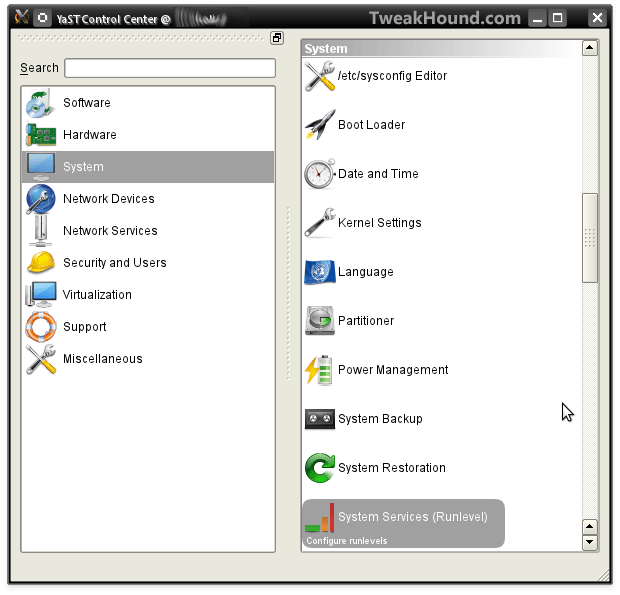

Now back in the YaST Control Center click on System then System Services (Runlevel)

sysserv

Highlight and then click Enable (or ensure that they are enabled) button for the following services:

cifs (only of you want to map a network drive)
nmb
smb
xinetd (should already be enabled)
Then click OK.

sysserv1

Now back in the YaST Control Center click on Network Services then Samba Server.

sserve

Under the Start Up tab ensure that Service Start > During Boot is checked.

If you are using the Suse firewall (enabled by default) also check Open Port in Firewall.

ss1

Click on the Shares tab. Check the box next to Allow Users to Share Their Directories.

The box next to Allow Guest Access is optional. It can be considered a security risk but can make things easier.

ss2

Next click on the Identity tab. Fill in your Workgroup or Domain Name (the exact same name as your Windows workgroup).

Next make sure the box under Domain Controller says NOT a DC.

Then, in the box NetBIOS Host Name enter the name you want for your computer. Click OK when done.

ss3



SWAT
Open Konqueror (or Firefox). In the address bar type localhost:901 and press the Enter key.
In the resulting screen enter your root name and password and click OK.
Click on the Globals icon. Fill in the sections marked by the red paw (if they are not already filled in). Most users will not need to mess with anything else.

Click the Commit Changes button when finished.

swat



Firewall

Now we have to make sure we can Samba to and from your Suse box through the firewall.
Open YaST. Click on Security and Users > Firewall.

f1

In the Start-Up section ensure the Start Firewall When Booting option is checked.

Click on the Allowed Services tab.

If you followed the previous sections correctly the Samba Server, Samba Client, and Netbios Server should already appear under allowed services.

If not:

Under Service to Allow choose Samba Server (if it isn’t already there) then click Add. Repeat this step and add Samba Client, and Netbios Server.

When finished click Next and then Accept. When finished go back to the Start-Up section and click Save Settings and Restart Firewall Now.

f2



Adding A User

Browsing and accessing files in both directions requires a user with Samba permissions.
This user needs to already exist. You can use your account if desired (if not then it’s best to add them through YaST).
To add a Samba user:
Open a terminal and su to root.
type the following smbpasswd -a username and hit enter (where username is the name of the user you wish to add).
type and then confirm password.



Sharing Files

Open Konqueror or Dolphin. Pick a folder you wish to share, right-click on it and choose Properties.
In the resulting window click the Share tab.

Check the box Share with Samba (Microsoft Windows).

The Allow box is optional but can make things easier (may be a security risk).

Click OK to save the changes.

share1



Letting The Network Do Its Thing

Now we are going to shut down every machine on the network. If you have a home server, a machine with a shared printer, or a machine that is usually on more than most then boot that one up first.

Let it get fully booted up then one-by-one start the other machines on the network, letting them fully boot up before booting the next one.

This method allows the network to sort of ‘reset” itself.

Once complete you should be able to browse to all network shares through Konqueror or Dolphin.

Look for the Network icons. You’ll be going to Network > Samba shares (or SMB shares) > your workgroup.

sambabrowse

You can also type in the name of the workgroup or machine in the address bar:
smb://windowsworkgroupname
or
smb://machinename



Printers

I have found that it is easiest for most folks to share printers from a Windows box to a Linux box than the other way around (there are several reasons for this beyond the scope of this guide).

This is the method I’m going to show you.

Open YaST > go to the Hardware section and click on Printer.

p1

Click on Print via Network then,
(Optional step – click the box next to Accept Printer Announcements from CUPS Servers > accept from all hosts in the local network.)
Then double-click the Connection Wizard.

p2

Choose Print Via Print Server Machine > Microsoft Windows/SAMBA (SMB/CIFS).
You’ll will need ALL the information for the boxes below.
Once you have filled in all the info click OK and in the resulting screen you will have a chance to pick the appropriate driver for your machine.

p3
Pick your driver, then click OK.
p4

Printers shared from openSUSE 11.4 and Windows 7 to openSUSE 11.4:

p5



-END-
